English-Irish pop band One Direction recently began its “Where We Are” world tour at the Estadio el Campin in Bogota, Colombia, in front of 60,000 fans. Colombian sound company C. Vilar LTDA provided sound reinforcement for the event. Company owners Mauricio and Cesar Vilar designed a system that featured Energia line arrays along with an assortment of other Adamson loudspeakers in support roles.
“The Energia system is extremely powerful,” explains Mauricio Vilar. “The fact that it is loaded with two 15-inch woofers makes it ideal for a venue the size of Estadio el Campin. Other line arrays would need a flown subwoofer to provide low frequency energy. Energia didn’t need that at all.”

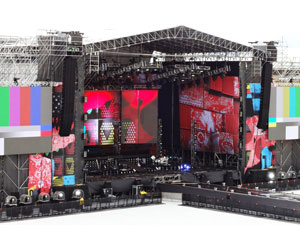

The left-right line arrays each comprised 18 E15 and 4 E12 enclosures. The arrays were flown at 16 meters with the goal to cover as much of the stadium as possible. Additional low end was provided by 24 T21 subwoofers, ground stacked 3×4 under each array.
“We worked with Brian Fraser, applications engineer at Adamson, to help create a 3D design of the system using the new Blueprint AV software,” explains Mauricio Vilar. “It was incredibly accurate and made system set-up that much easier.”
Front fill was covered by eight pairs of SpekTrix enclosures positioned at stage level on speaker cases across the width of the performance area. In order to avoid having monitors onstage, five Adamson M15 monitors were stacked on top of the SpekTrix pairs located directly in front of the stage. Two Y18 line arrays comprised of 12 enclosures each hung at the outer edges of the stage.
Unlike previous concerts C. Vilar had provided sound for at Estadio el Campin, the client wanted the delay towers—each equipped with Y10 line arrays of 10 enclosures—placed behind FOH, not further back in the field as they normally would be. With FOH approximately 74 meters away from the P.A., Vilar was initially concerned about the design providing seamless coverage.
“Fortunately after some very good system tuning we achieved great results from that location,” Mauricio Vilar adds. “The client was extremely happy with the sound quality and that we could accommodate their request.
“I was absolutely impressed to listen to the system coverage, especially when walking on the outer area, close to the out-hangs, by the upper balconies,” Vilar continues. “The clarity of the main P.A. in this area was amazing. More importantly, the client was equally impressed noting that the definition was incredible even at 150 meters away.
“The fact that we get a call every time a big show comes to Colombia makes us think we must be doing things right,” Vilar concludes. “Choosing to partner with Adamson has been a great decision for us.”
