OmniLine Provides Modern Solution for Temple Beth Israel

Temple Beth Israel in Melbourne recently upgraded its sound system with a Martin Audio OmniLine micro-line array to improve intelligibility, coverage and audio quality.

Since it was founded in 1930, Temple Beth Israel (TBI) has been shaping Jewish life in Melbourne, and from a technological perspective has become the first synagogue in Australia to stream Shabbat services online.

However, its sound system had aged to the point where it was no longer meeting the expectations of its increasingly technology-savvy congregation. Aside from its poor directional control and inability to deliver sufficiently intelligible speech, the inflexibility of the system infrastructure was restricting the new clergy’s creative development and exploration of new formats for services and events.

Thus the time was right to improve the usability of the Synagogue’s Sanctuary spaces and provide the congregation with effortless listening conditions.

Rabbi Gersh Lazarow’s vision for a modern, flexible worship space in combination with the strong musical aspirations of Cantor Michel Laloum led to the appointment of Hanson Associates as the acoustics and audio visual consulting engineers.

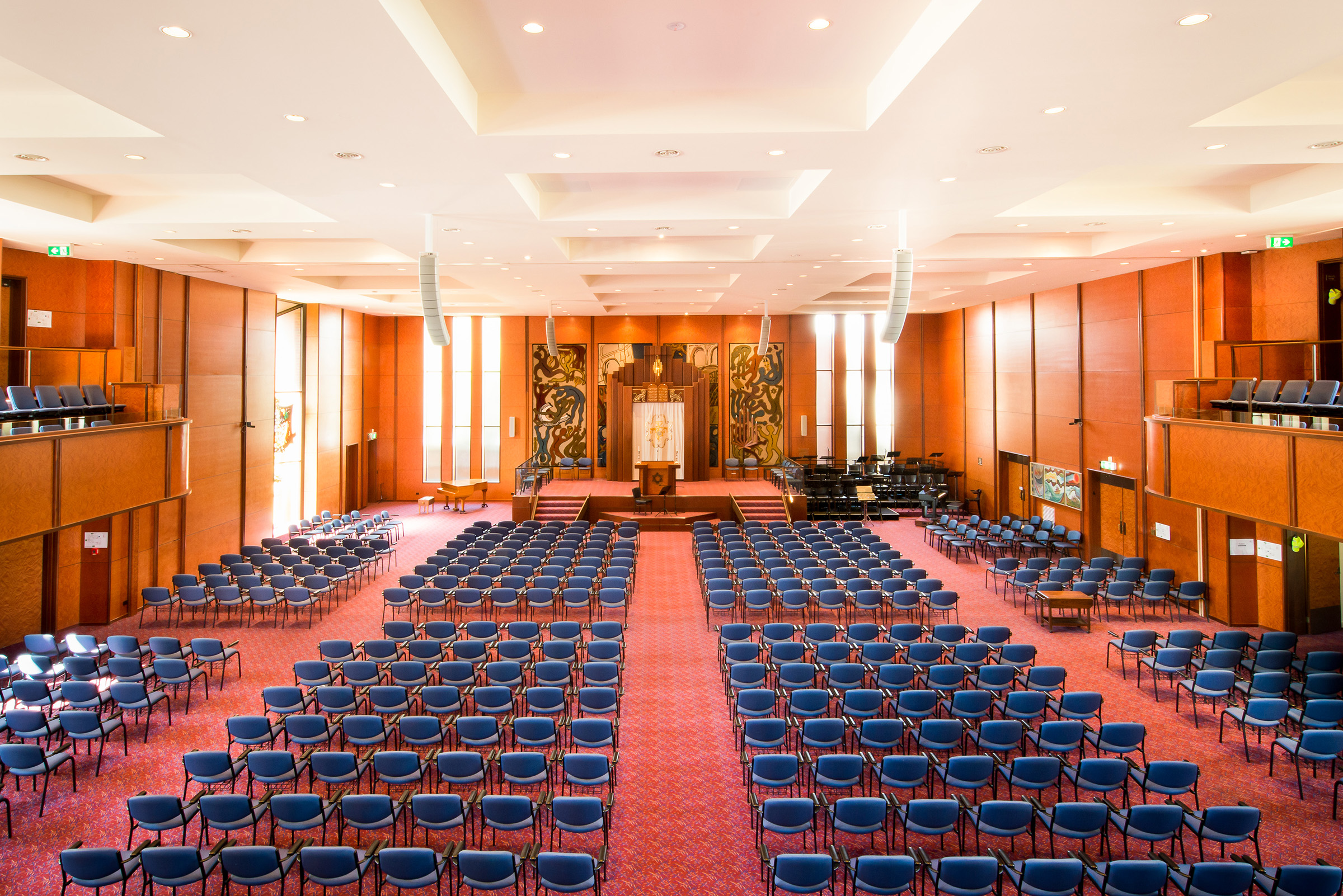

The consultants duly developed a performance specification for the new sound reinforcement system, identifying the products that would meet its challenging requirements. This resulted in the integrators, Urban Intelligence, rigging a discreet OmniLine micro line array from Martin Audio to provide the versatile solution required. The eventual system comprised 4 x 12-element actively processed line arrays, supplied by Technical Audio Group, Martin Audio’s Australian distributors.

The challenge had been to enhance the worship experience throughout the Main Synagogue and adjacent Slome Hall, two ‘grand’ spaces with significant spatial volume, separated by an operable wall. In combined format these spaces host large services, state funerals and music performances, when it can accommodate up to 1100 people. However, the space is generally subdivided, with worship occurring in the Main Synagogue and community events hosted in Slome Hall.

Hanson Associates’ Mark Hanson confirms, “We nominated OmniLine because computer modeling, conducted by the engineering team using Martin Audio Display software and EASE, proved it could meet the stringent electroacoustic performance requirements. The synagogue was also impressed with OmniLine’s small footprint and minimal visual impact.”

Furthermore, Hanson Associates were able to share experience of working with OmniLine in similar acoustically challenging environments. “We knew the extended linear frequency response and superior pattern control of the OmniLines across a large listening area, and their ability to minimize acoustic energy ‘spill’ onto reflective surfaces, would guarantee a high level of system stability for a wide range of room formats,” Hanson confirms.

Using Martin Audio’s Display 2 software, his company was able to model several scenarios and develop the final coverage pattern (and angles) for each line array configuration.

“Where many traditional line array systems rely on passive arraying of line array elements and the overall splay angles of the configuration to achieve a best possible coverage pattern, the optimized filters generated by the Display software enable an actively driven array to achieve drastic improvements in coverage and consistency across target listening areas,” he continues. Hanson cites the importance of specifically generated linear phase FIR filters for each of the 48-line elements in the four line array configurations to achieve a highly consistent seat coverage across all frequencies, while achieving impressive rejection of sound onto the stage and towards the upper balcony rear wall.

Another advantage was the variable beam steering presets that were implemented for the Slome Hall line arrays, both with and without the operable wall retracted.

During large services and events, the operable wall is retracted and the two pairs of OmniLine arrays are used in a main FOH and delay configuration. However, for most of the year, this wall is extended to separate Slome Hall from the Sanctuary. “Via the Display software, a second set of FIR filters was exported into an audio DSP preset to generate an entirely different pattern from the same physical array which cuts off sharply at the operable wall at the rear of the room.

“The results were stunning. Despite the live acoustic in Slome Hall, clarity of speech was instantly restored and the system was able to readily support day to day events at the tap of a touch screen.”

Each OmniLine hang was supported by custom bracketry, designed in conjunction with Urban Intelligence, to maximize the final tilt angles and allow cables to be concealed.

“With the control afforded by OmniLine, we have been able to achieve musical clarity and speech intelligibility, despite the reverberance,” says Hanson. “We have also avoided the need to implement under-balcony fills, and all sightline requirements have been met.”

In conclusion, he says, “The stability of the electroacoustic system, the success of the microphone and DSP mixer sections, and intuitive tablet user interface for the clergy has meant that complex services and events can be conducted involving multiple speakers and musicians without technical staff and sound engineers, as has previously been the case.”

Finally, the consultant credits other key personnel in the project including Mark Thompson of Hanson Associates who led the modeling work and undertook commissioning with David Gilfillan of Gilfillan Soundwork; Martin Audio’s Ambrose Thompson, for ongoing Display support as Hanson pushed the software and system to its limit; Urban Intelligence director, Lior Rauchberger, and site foreman Toby Leader.

For more about Martin Audio, please click to www.martin-audio.com.

About Martin Audio®

Founded by audio engineer David Martin in 1971, Martin Audio pioneered the use of all-horn-loaded bass designs in world-class touring loudspeaker systems for groups such as Pink Floyd, ELP and Supertramp. Located outside of London, Martin Audio now embodies a sophisticated mix of acoustic design, research, mathematical modeling and software engineering for a wide range of products in the installation, cinema and touring sound markets.
