Following many months of feedback from industry professionals, leading producers and engineers, PMC, the British manufacturer of world-class reference monitoring, is announcing at NAMM 2017 two additions to its next-generation Main Monitor range of active Advanced Transmission Line (ATL™) loudspeakers for critical music creation and production.

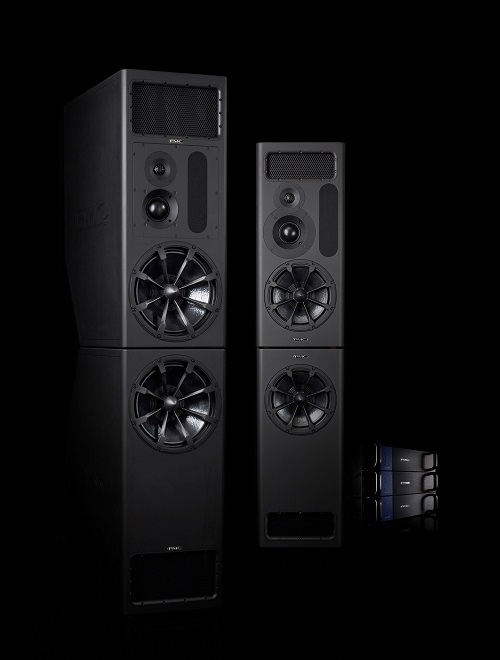

The new MB3 and BB6 are ultra-high-resolution active monitors with digital and analogue inputs, designed for freestanding or soffit-mounted use in recording, mixing, mastering and outside broadcast applications, and available as single- or twin-cabinet (XBD) versions. Both marry the effortlessly extended low-frequency response, wide dynamic range, non-fatiguing sound and extreme tonal accuracy and consistency of PMC's groundbreaking ATL™ designs with the power of the proprietary Class-D amplification first unveiled on the QB1-A main studio monitor, and subsequently installed in renowned international facilities including Hollywood's Capitol Studios. Precision tools designed by engineers for engineers, the MB3 and BB6 combine these market-leading attributes with the latest generation of PMC's industry-leading drivers and intelligently applied cutting-edge DSP, in cabinet designs re-engineered to further improve imaging and dispersion.
The MB3 and BB6 build on the design of PMC's internationally respected MB2 and BB5 monitors. Both new models feature PMC's hand-built, precision-matched 34mm soft-dome tweeter and legendary 75mm fabric mid-range driver coupled with the latest generation of the Radial™ low-frequency driver, built specifically for use with PMC's ATL™ designs. The MB3 features a 12-inch and the BB6 a 15-inch Radial driver; teamed with the ATL, these exhibit a flat response down to 20Hz and 17Hz respectively. The LF drivers have been engineered with an exposed exoskeleton to dissipate unwanted heat, thereby eliminating the detrimental effects of power compression — so they can be driven for extended periods at high output levels while preserving definition, and without exhibiting tonal changes or distortion. Both the MB3 and BB6 are available as single-cabinet (MB3-A and BB6-A) and twin-cabinet (MB3 XBD-A and BB6 XBD-A) active versions. The latter provide an ultra-smooth in-room response and offer 3dB more headroom (the MB3 XBD-A has a maximum SPL of 129dB, while the BB6 XBD-A will produce a massive 131dB). Dedicated centre-channel versions of the MB3 and BB6 are available for multi-channel systems, but subwoofers are not required, as the 20-60Hz sub-bass frequency range is already comprehensively covered. Instead, all the new systems incorporate dedicated ‘Point One’ inputs to accommodate the LFE channel from surround mixes, such as the effects channel in film soundtracks.
Powerful amplification partners the new loudspeakers’ robust, precision drivers. PMC's Control 1200 and Power 2400 Class-D amplifiers ensure that there will always be ample headroom, no matter what demands are placed on them. Each channel of the new MB3-A, MB3 XBD-A and BB6-A is powered by a single Control 1200 (supplying 275W of power to the high-frequency driver and 550W to the mid-range unit) and a Power 2400 unit, which, as its name suggests, supplies 2400W to the bass driver (and to the XBD unit on the MB3 XBD-A). The exception is the BB6 XBD-A, which has an additional Power 2400 dedicated exclusively to the 15-inch bass driver in the XBD cabinet for the ultimate in control, headroom and bass definition — a total of 5625W of power per channel.
As with the QB1-A Main Monitor, both the MB3 and BB6 incorporate advanced DSP which is employed here to finesse what is already an extremely well-engineered design. The DSP optimises the response of the drivers, maximising their dispersion, guarantees a flawless 24dB-per-octave crossover, and provides non-invasive protection using modelled excursion limiting. The DSP also provides shelving EQ for in-room integration, along with four presets, which are ideal for personal settings when multiple users have access to the system or if a particular custom balance is required. These can be accessed via a wired RJ45 desktop remote control with a backlit display and jog wheel, which is supplied as standard with all the new models. The remote also allows input switching and shelving EQ adjustments to be made from the listening position without the need to constantly refer to the rear panel of the monitors.
The cabinets used play integral roles in the high performance of the MB3 and BB6; aside from incorporating the Advanced Transmission Line itself, the construction of the enclosure must be of a high standard to eradicate colouration and audible cabinet talk. Highly braced, resonance-damped Medite® is used with offset HF and MF drivers, radiused edges and acoustically absorbent StealthBaffles™ at the boundaries, as employed in the QB1-A design, to minimise edge diffraction effects. These details were formulated with the aid of pioneering acoustic research and measurements undertaken by PMC in anechoic environments at the UK's National Physical Laboratory, using opto-acoustic laser interferometry to map the soundfield and acoustic dispersion.
The MB3 and BB6 are not only utterly dependable audio engineering tools that allow users to deliver their best work, but are also a pleasure to work with over long periods.
“All of our reference monitors have to satisfy these important criteria," explains Oliver Thomas, Head of Design at PMC. "They're precision tools which are relied on in all analytical audio applications, and we truly believe that they allow everyone to work faster, better, and with complete confidence. But these technical aspects, their high resolution and complete neutrality also ensure that all the emotion of a performance is translated to the listener. So these are loudspeakers for the heart and mind. They offer supreme tonal accuracy, detail and translatability, but also musicality and the power to move you — physically and emotionally."
For more information on the new additions to the PMC Main Monitor range, see www.pmc-speakers.com/products/professional/active, or come to stand 6598 during NAMM to experience them first-hand.
PMC is a UK-based, world-leading manufacturer of loudspeaker systems, the tools of choice in all ultra-critical professional monitoring applications, and also for the discerning audiophile at home, where they provide a transparent window into the recording artist's original intentions. PMC products use the best available materials and design principles, including the company's proprietary Advanced Transmission Line (ATL™) bass-loading technology, cutting-edge amplification and advanced DSP techniques to create loudspeakers that present sound and music exactly as it was when first created, with the highest possible resolution, and without coloration or distortion. For more information on our clients and products, see www.pmc-speakers.com.
