| MIX VERDICT: FOCUSRITE ISA C8X AUDIO INTERFACE |
| THE TAKEAWAY: “If you’re in the market for a new studio centerpiece that delivers pristine capture, warm console character and serious expansion options, the C8X deserves equally serious attention.” |
| COMPANY: Focusrite • us.focusrite.com PRICE: $2,299.99 PROS: • Twin ISA preamps with selectable Console and 430 Air modes. • Six ultra-lownoise Focusrite microphone preamps. • Eight dedicated line inputs and expansion through ADAT. CONS: • Front-panel analog input connections are limited to two ¼-inch instrument inputs. |
New York, NY (October 1, 2026)—The venerable eight-channel-and-beyond rackmount audio interface is the anchor point of countless professional and project studios. It’s also the piece of gear that is generally the most ignored unless something goes terribly, terribly wrong. So, it’s a rare occasion when a new interface hits the market and generates genuine excitement, lengthy user-forum discussions, and some quick “cost-to-feature” math among producers and engineers. The new Focusrite ISA C8X is just that kind of product.
The ISA C8X is the first audio interface in Focusrite’s long-running ISA range, occupying a space between the company’s well-established Clarett+ USB interfaces and its professional, Dante-based RedNet systems. It is a 26-input, 28-output, 2U USB-C device designed to serve as the central recording, routing, monitoring and conversion hub for an entire studio.

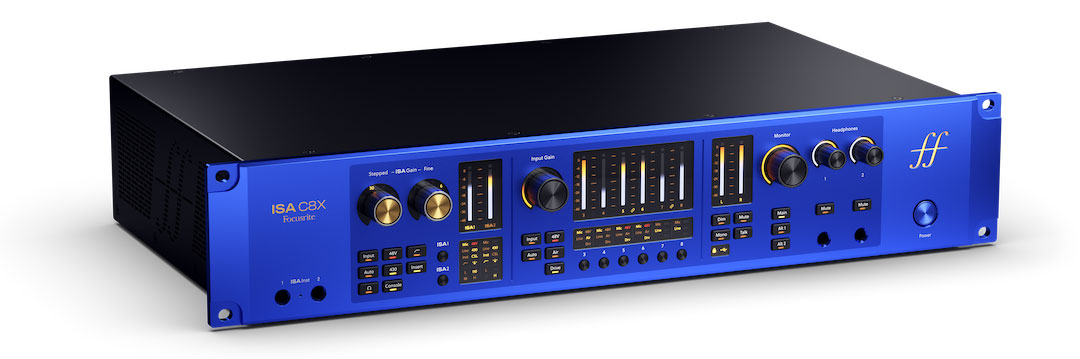

The unit’s defining feature is, obviously, the inclusion of two full-featured ISA microphone preamps based on the transformer-coupled ISA 110 circuit Rupert Neve developed in 1985 for Sir George Martin. The design would later become central to Focusrite’s Forte and Studio consoles.
• Discover more real-world reviews—get the Mix SmartBrief free!
Each preamp uses a Lundahl LL1538 input transformer and provides up to 79 dB of gain, stepped and fine gain adjustment, switchable impedance, balanced inserts and high-pass filtering. The two channels also introduce an all-analog Console mode for variable saturation and additional low-end weight, along with a 430 Air mode that adds high-frequency lift.
The front-panel instrument inputs are routed through the same Lundahl transformers and offer selectable impedance, Console mode and 430 Air mode, making the ISA channels equally compelling for direct guitar, bass and other instrument recording.
Alongside the two ISA channels are six remotely controllable, ultra-low-noise Focusrite microphone preamps, each offering up to 69 dB of gain. These channels include analog Air mode and variable Drive DSP, giving users a choice between transparency and more colored tones. Auto Gain can set levels across all eight preamps in seconds, either from the front panel or through the Focusrite Control 2 desktop software and companion mobile app.
• READ THE SIDEBAR: Focusrite Control 2 Software
The ISA C8X also features eight dedicated, fixed-gain balanced line inputs intended for patch bays, outboard equipment and permanent studio installations. This arrangement allows external preamps, compressors, synthesizers and other line-level devices to remain connected without constantly repatching the system.
Focusrite has equipped the ISA C8X with the same 24-bit/192 kHz AD/DA converters used in its RedNet range, with up to 125 dB of dynamic range and extremely low distortion. That flagship conversion, combined with its expanded analog I/O and monitoring capabilities, establishes the C8X as a substantial step up from more consumer-oriented interfaces.

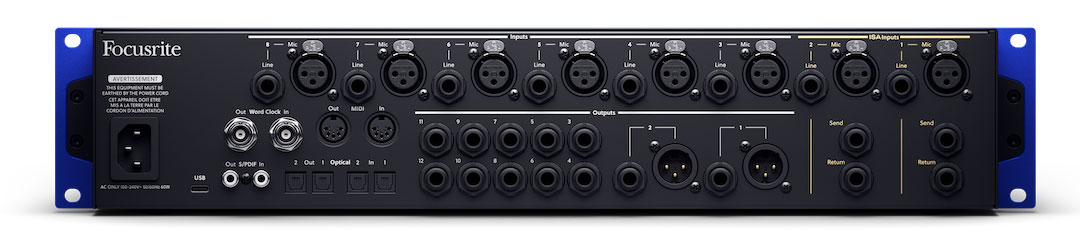

A dozen balanced line outputs support anything from mono and stereo monitoring to 7.1.4 configurations. A trio of monitor groups can be switched from the front panel or remotely, while outputs 1 and 2 are provided on both XLR and TRS connections.
A pair of independently controlled headphone outputs are optimized to drive a range of headphone impedances. Digital expansion includes up to 16 channels of ADAT I/O at 44.1 or 48 kHz, or eight channels at 88.2 or 96 kHz. S/PDIF is also available, while MIDI and Word Clock provide additional connectivity and synchronization options.
Finally, Focusrite Control 2 brings the interface’s routing, monitoring and preamp functions into a single software environment. Users can remotely adjust settings, manage low-latency monitor mixes, and save or recall complete studio configurations from the desktop application. A paired mobile device also works if you’re elsewhere in the studio.
FROM UNBOXING TO THE RACK

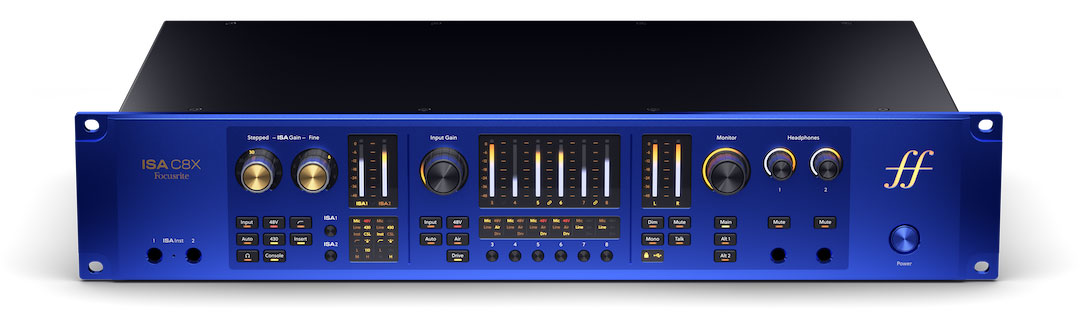

The ISA C8X is visually striking and clearly differentiated from the Clarett+ line. Its textured aluminum faceplate uses Focusrite’s familiar ISA blue, complemented by multicolored input and output meters that extend across the preamp, monitor and dual-headphone sections.
The front panel presents a substantial amount of control without feeling overly crowded. Rotary encoders handle gain and other adjustable parameters, while channel-selection buttons assign the shared controls to individual preamps. Channels 1 and 2 provide stepped and fine gain, 430 Air, Console, impedance, insert and high-pass-filter controls. Channels 3 through 8 provide continuous gain, analog Air and variable Drive.
The two ISA preamps share the same central set of controls, with dedicated buttons used to toggle between the channels. For channels 1 and 2, there are separate stepped and fine controls for dialing in the gain. Channels 3 through 8 are controlled with a single encoder and corresponding channel-selection buttons.
Getting started with the ISA C8X could not be much simpler. On my system, the initial setup took around five minutes. After installing Focusrite Control 2, the software detected the C8X and prompted me to install the latest firmware. The review unit produced several notable relay clicks and clangs while updating and rebooting. It also makes some mechanical noises when switching between sample-rate settings, which is completely normal. Once setup was complete, the C8X appeared as a connected USB-C audio device at both the system level and across software options.
“THAT” SOUND
The clear starting point for the ISA C8X is to use it across vocals and acoustic guitar, with a large-diaphragm condenser microphone connected to one of the ISA preamps. First off, both the stepped and fine input controls and the Auto Gain function enable you to zero in on the right recording level very quickly. (You can also link adjacent channel pairs and apply Auto Gain across multiple sources.)
From there, the un-enhanced signal is bright, clean, transparent and punchy, and it sits well in a mix. The addition of the 430 Air setting provides a pronounced high-frequency lift without sounding distorted or harsh. Finally, the big-ticket Console setting brings in very satisfying amounts of saturation, warmth and low-end weight. It adds such a pleasing character to vocals that you may find yourself turning off or dialing back your go-to saturation plug-ins when you begin the mixing process. The selectable 75Hz, 18 dB/octave high-pass filter is also a convenient way to remove low-frequency rumble that you’re going to EQ out anyway.
For direct recording of guitar and bass, the ISA preamps’ front-panel instrument connections pass the signal through the same Lundahl transformers. Selecting 430 Air adds high-frequency lift and presence, while Console introduces saturation and additional low-end punch. When using amp-modeling software, the added harmonic character can cause the signal to interact a little differently than what you may be used to, but in a very good way.
The other half-dozen channels use Focusrite’s remote-controllable, ultra-low-noise microphone preamps. Paired with the RedNet-derived conversion, these channels also feel like a serious upgrade from more conventional interface preamps.
THE DOLLARS-TO-FEATURES MATH
If you’re keeping score at home, the ISA C8X delivers two transformer-based ISA preamps, high-end conversion, comprehensive monitoring control, and an expandable 26-input, 28-output USB-C recording platform for a list price of $2,299.99. It would be difficult to assemble any equivalent combination of preamps, high-end conversion, monitoring control, and expandable I/O à la carte at the same price.
The C8X represents a very interesting and welcome sea change in the world of audio interfaces, especially at this aggressive price point. In terms of preamps, conversion technology and perceived sound quality, the old formula of “transparent” and “good enough” faces a serious new challenger. If you’re in the market for a new studio centerpiece that delivers pristine capture, warm console character and serious expansion options, the C8X deserves equally serious attention.
