UAD Capitol Chambers Plug-In

Universal Audio Re-creates 4 Classic Reverb Signal Chains
Author:
Publish date:
Capitol Chambers Plug-In GUI

Universal Audio's UAD software v9.9 now includes the world's first authentic plug-in emulation of four (of the eight) underground echo chambers located 30 feet beneath the parking lot of the famous Capitol Records building in Hollywood, Calif.

Designed by Les Paul, chambers 1 through 4 were included in the original reinforced concrete construction of the iconic Capitol Records Tower that was completed in 1956. Later, in 1969, part of the parking lot was excavated and echo chambers 5 through 8 were installed. All eight are still in regular use today.

The eight chambers are all trapezoidal-shaped, "room-within-room" spaces that vary slightly in cubic volume. The chambers were each tuned by slightly angling the walls and sloping the ceilings in different ways. To enhance reflectivity, the interior floors, walls and ceiling surfaces are shellacked.

Either a pair of Altec "Voice of the Theatre" A7s or 604e studio monitors were used and driven in mono as they still are today. At the time, two Altec 21D "Lipstick" small-diaphragm, omnidirectional tube condenser microphones were used for the stereo returns in all chambers.

The Capitol chambers are prized for their smooth response and long decay times. I can attest to their lovely sound, having always preferred using them during my past recording sessions at Capitol Studios.

So revered and noteworthy, the Capitol chambers were often "leased" for use by other studios around Los Angeles. High-quality audio phone lines were set up between Capitol and the Village, Western Recorders (now EastWest Studios), United Recording and others. However, as a victim of its own success, this practice was later discontinued in the mid-1990s due to the insistence and greater demand from Capitol's in-studio clientele.

The sound of those chambers is on thousands of hit records, from Ray Charles to Frank Sinatra, The Beach Boys, Beck, Paul McCartney and Muse. Real echo chambers are a vanishing resource because they take up valuable real estate (space) and building a good-sounding one is not an exact science.

The UAD Capitol Chambers video tutorial thumbnail.

The UAD Capitol Chambers video tutorial thumbnail.

Emulating a Classic

Under the guidance of Capitol chief engineer Steve Genewick, UA was granted access to the chambers themselves and the historic technical diagrams and blueprints to create the Capitol Chambers plug-in.

The plug-in includes emulations of four of the studio's most popular echo chambers—2, 4, 6 and 7—with the sound of every part of their original signal chains also modeled, including the Altec 21D microphones (plus three other mic choices), custom solid-state microphone echo return preamps, BGW power amps (installed in the '80s), and the various Altec and Tannoy speaker setups.

Exclusively for UAD hardware DSP cards and audio interfaces, Capitol Chambers was created using UA’s proprietary Dynamic Room Modeling technology, which combines sampled impulses with algorithmic DSP processing. DRM enables the creation of new sounds not easily accomplished or impossible with real echo chambers.

The included preset list reads like a "who's who" of talented, Grammy-winning engineer/producer/mixers, such as Al Schmitt, Frank Filipetti, Ross Hogarth, Niko Bolas, Joe Chiccarelli, John Paterno, Steve Genewick and many others.

More August Product Reviews: Polyverse Music Comet | KRK Rokit G4 Monitors

The Four Best of the Best

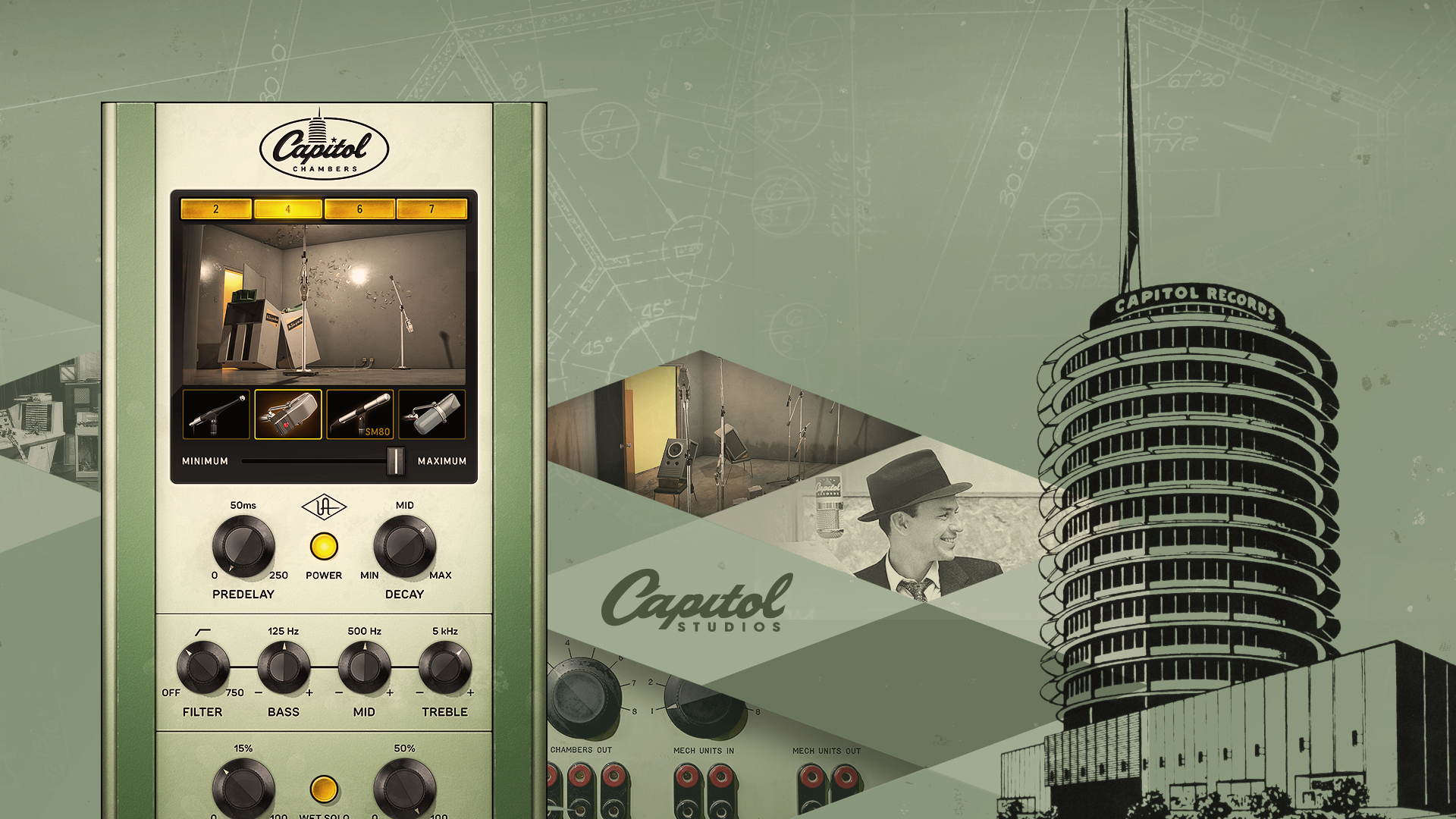

The Capitol Chambers plug-in GUI comes sporting an "institutional green" color scheme and launches with Chamber 4 as the default. Chamber 4 is set up with the current microphones and locations as used by Al Schmitt—it's his favorite. There is a row of four buttons at the top of the GUI for selecting any of the four chambers at any time. There is a depiction of the chamber's interior showing the access door, two speakers and the microphones in their positions.

Below the chambers is a row of four buttons for selecting any of the microphone pairs: the Altec 21D, RCA 44 figure-8 ribbon, Shure SM80 omni-directional condenser, and a Sony C37A tube cardioid condenser. Currently, with the exception of Chamber 5 (not included in the plug-in) and its pair of Sony C37As and Chamber 6 with two RCA 44s, all the actual Capitol echo chambers use the SM80; it's the default microphone modeled for the Capitol Chambers plugin.

The natural RT60 decay times for the four chambers range from 5 to 9.5 seconds. The adjustable Decay Time control knob's Max position is the (default) original and natural decay time captured in the particular chamber selected. By way of the DRM algorithm, you may adjust the Decay Time knob only downward to a minimum of 1 second.

In addition to adjusting Decay Time, you can change the speaker-to-mic distance using a large horizontal Microphone Position fader, or by simply click/dragging the mics back and forth in the chamber image. (Note: As the rooms are trapezoidal, with the speakers located in the narrow end of the chamber in front of the access door, moving mics further way into the wider part of the room causes the mics to spread laterally, left and right, and further apart.

Changing chambers, presets, decay times, microphones and positioning requires recalculation by the algorithm, and it can take up to several seconds—you'll see the Capitol Tower antenna light flash during this time. If you only change the mic or its position, you'll see the chamber access door open to indicate that a "tech" is in the chamber—cute!

The algorithm's computational time lag makes quick A/B comparisons difficult; same for automating changes during playback. Changes are not completely implemented until either the flashing tower light goes out or the door shuts. But transitions are smooth, and I heard no sudden mutes, pitch-change or clicks. The manual has a whole chart of acceptable automation recommendations.

Parameters that are instantly discernible include: pre-delay adjustable from 0 to 250 ms, and a variable 80Hz to 750Hz highpass filter (6dB/octave) placed in the send path to reduce any unwanted low frequencies going into the chamber.

There is also a very useful three-band equalizer placed in the stereo return path. Each band has ±10dB continuous boost/cut with 125Hz, 500Hz and 5kHz frequency bands. The 125Hz and 5kHz bands are Baxandall-style EQs, while the 500Hz midrange band is a proportional-Q design. Clicking on the EQ band's frequency or the Filter's off position resets the knobs to flat. There is also a Width control adjustable from 0% for a summed L/R mono output up to 100% for full stereo.

Finally, the plug-in has a Wet/Dry control with a Wet Solo button that forces the user into 100% Wet mode. Wet/Dry or Wet Solo modes are saved with the particular instance of the plug-in (not preset). I normally use echo chambers as send/return effects during mixing, but I did try it as an insert effect. Stereo instances will preserve the dry signal's stereo panning.

The company advises against using the plug-in for tracking in their Console Application or Realtime UAD Processing. There is increased latency as compared to other UAD plug-ins and in my Pro Tools HDX session at 96 kHz, delay compensation indicated 4,914 samples—so no problem.

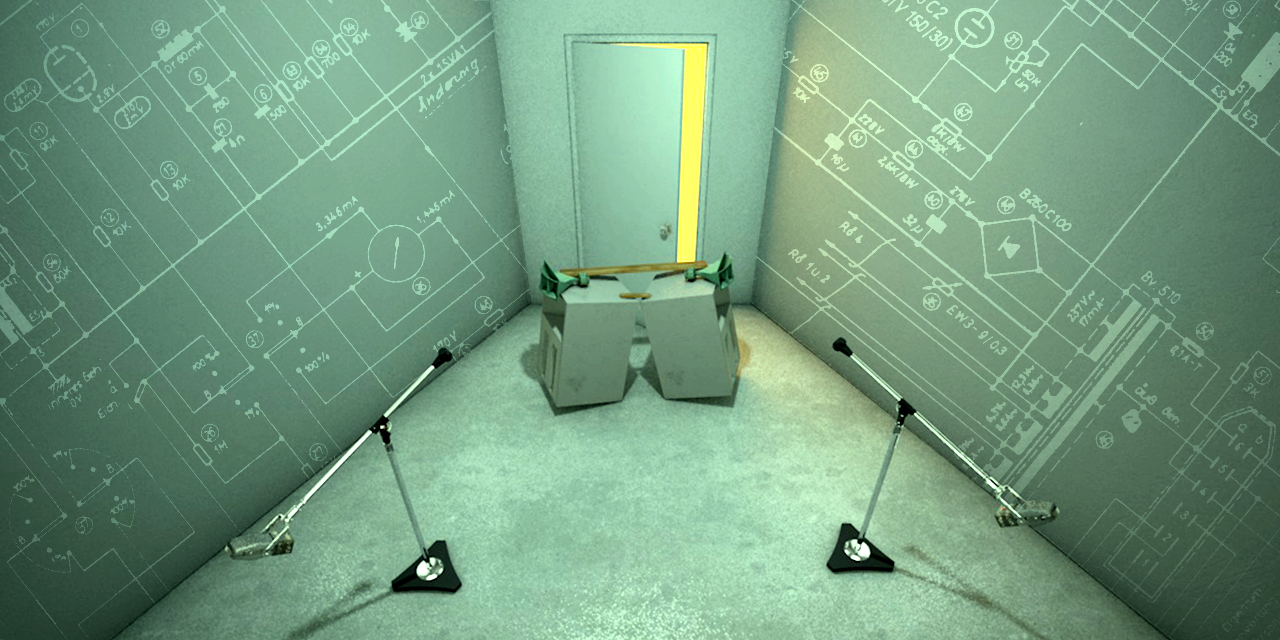

The chamber view, with overlaid schematics.

The chamber view, with overlaid schematics.

What Do They Sound Like?

To start fresh by building my own presets, I would first call up the factory default—chamber 4 using the SM80 Mic, Max Decay time setting, Maximum mic distance, no Pre-Delay, 100% Width, flat EQ, and no Filter. Then I simply would make changes and save as a new preset.

I quickly compared each of the four chambers’ character by sending to all four simultaneously and just unmuting a particular chamber's return one at a time. In my Pro Tools 2019.6 HDX session, the four instances used about 43% of my UAD Octo card's DSP. For sure, it is a luxury to compare the different chambers on lead vocals, various instruments and drum kits this way.

It is easy to hear each of the four chambers’ unique "thing" this way, and they all sounded excellent, with warm, full-range sound. It is my preference to use the highpass filter in the send path to constrain somewhat how much low-frequency energy fills up the chamber. Depending on the source sent to it, I also discovered that for each chamber I would recheck the three-band equalizer setting to reduce/enhance particular resonant frequencies. Most of the time, no change was necessary—the reverberation always sounded awesome.

Keeping all the chambers at their default state, my immediate impressions are: Chamber 2 is has the shortest natural RT60 time and proved good for vocals; Chamber 4 has a longer decay time and is the most generally useful overall for all sources; Chamber 6 has an even longer decay time, with an awesome "wave-like" reflection characteristic; Chamber 7 has the longest natural decay time of the four, with echoes resonating and easily heard bouncing around inside creating an epic soundscape. Each chamber returned about the same level when using an equal send level, so changing chambers in the middle of a mix is not a problem; this reflects solid design.

Construction of the original echo chambers.

Construction of the original echo chambers.

Capitol Chambers in Use

There are a lot of excellent presets to use as starting points, and I started looking for very short ambiences for purposely coloring the sound of drums, vocals and guitars. Ross Hogarth has his "Angry Electric Guitar" preset that adds a coloration using Chamber 7 and the C-37A microphones. I lengthened the minimal decay time setting and moved the microphones out a little further and it ended up being a cool and unique snare drum reverb.

For a Rock lead vocal sound, I tried Richard Chycki's "Drum Room 2—Dark Tight" preset. It is Chamber 2, but I changed to the C-37A mics and dialed in a slightly longer decay, closer microphones and a considerable Pre-Delay.

A very “old school” feature is that there are no numbers or readouts for indicating Pre-Delay values, exact RT60 times or how close the mics are. There are no sync-to-tempo buttons in this plug-in, either—use your ears!

For a vocal I was working on, I liked being able to dial the stereo width of the returns down 50% or more and slightly boosting 5 kHz on the return EQ. The ambience is placed exactly on top of the vocal track like a tight "halo" around it. In addition, I would also send to another instance set to Chamber 4 with full stereo returns. This combination is very impressive for a big, upfront, lead vocal to command the track, or it could be easily "tucked" into the track if desired.

I wanted a modern-sounding drum reverb, so I started with Chamber 6 and did heavy carving with the highpass filter and equalizer. The Filter knob was nearly straight up, the 500Hz EQ was halfway down—removing a lot of "honk"—and I maxed out the 5kHz band. I used the Altec 21D mics, reduced the Decay Time knob to halfway between the Mid and Max positions, and kept the Microphone Distance at Maximum.

With that much spectral energy removed from the send signal, the send fader level was a little higher than normal, but I thought that this setup gave the drum kit a taller size and huge scale without washing it out.

Echo Chambers Rule!

It's been a few years now since I used a real echo chamber, and I'm pretty excited to start again with the Capitol Chambers. These are just as I remember using the real ones years ago. Capitol Chambers impart more of a euphonic room tone than just mixing in recorded room ambient microphones.

All of the chambers in this plug-in seem to take additional post-processing well—compression, extreme EQs, even gating because they start with the best possible source! Hats off and thumbs up! Capitol Chambers is in every mix from now on!

PRODUCT SUMMARY

Company: Universal Audio Inc.

Product: Capitol Chambers Plug-in

Web: www.uaudio.com

Price: $349 MSRP

Pros: A faithful re-creation of the iconic Capitol Studios Echo Chambers

Cons: None, except no RealTime UAD Processing possible.
