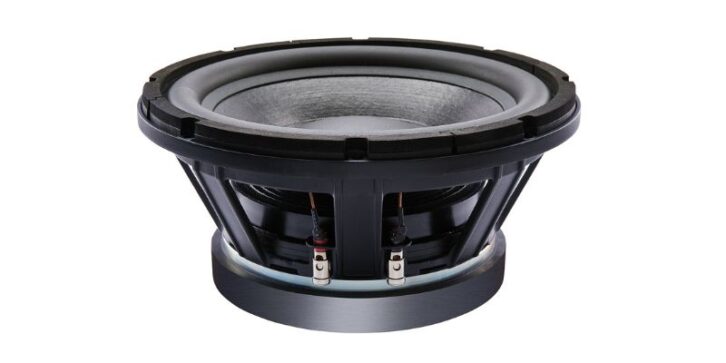

Celestion Introduces the FTR12-4080DL 4-ohm Low Frequency Driver

New 4-ohm Driver in the LF Loudspeaker Series Designed to Deliver Uncompromising Bass

Ipswich, UK (July 26, 2023) —Celestion, one of the world’s leading suppliers of professional loudspeakers and compression drivers for sound reinforcement applications is proud to introduce the FTR12-4080DL (4-ohm) 12-inch, cast aluminium chassis, ferrite magnet low frequency driver which is specifically designed for subwoofer applications. Well-established as an 8-ohm driver, this purpose-built subwoofer is newly available in 4-ohm, making it ideal for applications that are hungry for every watt of amplifier power when delivering uncompromising bass.

The Celestion FTR12-4080DL features a 4-inch (100 mm) voice coil, providing 1400W of continuous power handling and 88dB sensitivity with an output frequency range of 20-300Hz. The half-roll elastomer surround offers improved modal distribution for reduced distortion and enables greater stability at extremes of excursion (with an Xmax of 13.6mm) for a solid, deep bass response.

The Airflow vented magnet assembly allows for dynamic heat dispersion, minimising power compression and enhancing product longevity. The driver features optimised double suspension for enhanced control and linearity and the glass loaded paper cone features a weather-resistant impregnation for extreme durability.

Developed at Celestion’s headquarters in Ipswich, England, this loudspeaker was designed using specialist FEA (Finite Element Analysis) modelling techniques, enabling the Celestion engineering team rapidly to achieve genuine increases in performance, including greater efficiency, and exceptionally low distortion.

The new FTR12-4080DL cast aluminium loudspeaker emphasizes Celestion’s continuing commitment to delivering a wide range of high-quality solutions for sound reinforcement and professional audio applications.

FTR12-4080DL Specifications

Nominal diameter                 305mm / 12in

Nominal power rating          700W

Continuous power rating    1400W

Rated impedance                4Ω or 8Ω

Sensitivity                              88dB

Frequency range                 20-300Hz

Chassis type                         Cast aluminium

Magnet type                          Ferrite

Magnet weight                      3.6kg / 126oz

Voice coil diameter              100mm / 4in

Voice coil material                Round copper

Former material                    Aluminium

Cone material                       Glass loaded paper (weather-resistant)

Surround material                Elastomer

Suspension                          Double

Gap height (Hg)                   9.5mm / 0.37in

VC winding height (Hvc)     32mm / 1.26in

Xmax                                      13.6mm / 0.54in

About Celestion

With worldwide headquarters in Ipswich, England, Celestion design, develop and manufacture premium guitar and bass loudspeakers, and high-quality professional audio drivers for sound reinforcement. These world-renowned speakers are used onstage and in clubs, theatres, and other venues the world over. Contact Celestion at: info@celestion.com and visit us on Facebook at www.facebook.com/celestion.
