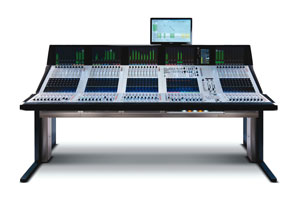

Studer by Harman introduces its new Vista X digital console and the Studer Infinity Processing Engine large-scale mixing console technology for broadcast applications. The Vista X offers an intuitive user interface, retaining the company’s patented Vistonics and FaderGlow user interface, providing control of 800 or more audio DSP channels and more than 5,000 inputs and outputs.
At the heart of the system is the Infinity DSP core, which uses CPU-based processors to provide huge numbers of DSP channels for large-scale, high-resolution audio processing and mixing. Thanks to the Infinity core, this is the first time more than 800 audio channels have been processed in a single CPU-based board.
Studer states that the impetus behind Infinity was the company’s desire to create a DSP engine that offers superb sonic quality and is adaptable and flexible to meet the changing demands of the market. The attraction of CPU technology as used on most computers has resulted in huge worldwide R&D investment in this technology. As such, these chips are not only extremely reliable in operation but also result in a doubling of processor power every 24 months (known as “Moore’s Law”).
The new Infinity DSP engine provides 12 A-Link high-capacity fiber digital audio interfaces, providing more than 5,000 inputs and outputs. A newly designed high-density I/O system, D23m, is used to break out these A-Link connections to standard analog, digital and video interfaces. The A-Link interface also provides direct connection to the Riedel MediorNet distributed router, allowing many Infinity systems to be connected together with router capacities of 10,000 square or more.
A key element in the design of the Infinity Series is to avoid the possibility of a single fault causing loss of audio. Taking a lead from the “fly by wire” aircraft industry with multiple redundant processors flying the airplane, the new Vista X console features four processors, offering complete redundancy of the control surface. Now, the Infinity Core, with a combination of CPU-based DSP and A-Link audio interfaces, offers N+1 redundancy of the DSP engine and I/O with instant switchover between main and standby system without audio break.
