RTZ Professional Audio PEQ-1549

Feature-Packed 500 Series Parametric EQ
Author:
Publish date:
Social count:
0
Feature-Packed 500 Series Parametric EQ

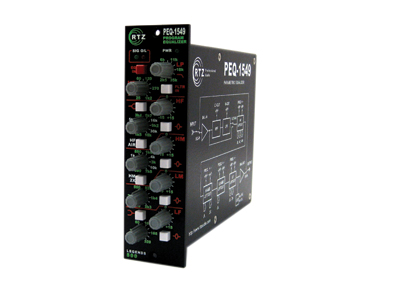

The PEQ-1549 is a component-packed marvel of multilayer, electro-mechanical design.

The PEQ-1549 Parametric EQ, RTZ’s new entry into its Legends 500 line of single-channel modules for 500 Series racks, is a 4-band unit that covers the 25 to 35k Hz range with switchable high and low Q modes for all four bands, and switchable shelving modes for the high and low frequency bands. In addition, there are continuously variable second-order (12dB/octave) high- and lowpass filters. The HP filter sweeps from 25 Hz to 1.2 kHz, while the LP filter varies from 2.5 kHz to 35 kHz.

Musical Specs

To expand the PEQ’s musical usefulness, both the high frequency (HF) and high-mid-band (HM) sections are dual-band. In normal mode, the HF band ranges from 1.5 kHz to 16 kHz and, when switched to Air-Band, it spans 3.4 kHz to 35 kHz. The HM band range is 350 Hz to 7.5 kHz but when the 2X switch is engaged, it covers 680 Hz to 16 kHz. The high and low Q values available in the HF section are 1.1 and 3.4, while the HM section’s choices are: 1.5 and 3.8.

The Low-Mid frequency band ranges from 210 Hz to 2.3 kHz with a Q of 1.5 or 3.9. The LF frequency band ranges from 30 Hz to 320 Hz with a switchable Q of either 3.4 or a very narrow 12.1.

All Q values are specified at maximum boost/cut and were individually chosen for each section for their musicality—including the higher Q available in the low-frequency section—making it an exceptional musical tool.

Compact Design

The PEQ’s four EQ sections use NE5532 dual op-amps in a state-variable filter topology. The SVF design has the advantage of allowing easy and simultaneous adjustment of Q and frequency in each section without interaction. The HP and LP filters use Sallen-Key Butterworth filter circuits. The PEQ uses a THAT Corp. 1206 balanced line receiver for the input and a THAT 1646 balanced output line driver. You can order modules with an optional Lundahl LL2811 output transformer for additional “color” and true galvanic isolation.

It’s obviously a challenge to build an equalizer with 10 knobs and 10 pushbuttons on the front panel of a single-slot 500 Series module—it just might be the maximum number of controls readily adjustable by human fingers. To accommodate this, the inside of the PEQ-1549 is a component-packed marvel of multi-layer, electro-mechanical design. It uses a four-layer printed circuit board designed to maximize isolation and minimize the noise floor via a full split ground plane design. The ±16-volt power rails are routed on a separate internal power layer.

There are 10 conductive plastic pots made by BI Technologies that each have 11 detents with the center position set as unity for boost/cut controls. The six frequency controls (4-bands plus 2 for the HP/LP filters) also have 11 detents, and both frequency and gain pots allow fine adjustment in between the detents. Pushbuttons are E-Switch PBH series with silver contacts, as are the contacts in the Omcron G6K true bypass relay. One relay is used for the EQ bypass, the other switches the HFP/LPF in/out. Equalizer capacitors are Wima film caps and all electrolytic caps are Panasonic FC series.

In the Rack

For review I received two PEQ-1549s with the transformer option and I connected them from my API 6B 500 rack to my Pro Tools HD I/O so I could use them as inserts when mixing in the box. At first glance, they appeared daunting, with a busy and crowded front panel, but the design does allow room to get your fingers in there; plus, the detented rotaries give you a good feel of what you’re doing. After a short time using them, I was getting around quickly.

At the top of the module, there is a green power LED, an easy-to-find red, in/out (relay bypass) button and a red O/L LED that lights at +20dB output level. The front panel silkscreened lettering is small and color-coded and, being nearsighted, I liked having the modules close to me for precision tweaking. All four EQ sections have white pushbuttons to toggle between the two Q choices and the two shelving modes. Using shelving mode overrides Q selection.

The PEQ allowed me to sculpt the tone of a Yamaha five-string electric bass that had onboard active electronics. My goal was to arrive at a big sound that “coupled” to the kick drum and fit into the track well without sounding like a synthesizer.

I began by using the HP filter set to 50 Hz to slim the subsonic—especially important whenever the Yamaha’s open B string was played. Using the LF section, I boosted 6 dB at 80 Hz in high Q peaking mode to carve, in a very precise way, the overall size and low-end quality of the bass track.

The bass part was played expertly and smoothly but without a pick. For the mix, the producer required more “cut” and definition, so I used the PEQ’s HM section and generously boosted +9dB at 1 kHz in high Q. This extreme EQ did bring up occasional fret/string noises that I either had to edit out or clip-gain down later in Pro Tools—but the finished bass sound was all worth it. I got smoothness with more attack and greater clarity, and it evened out the loud, booming notes without having to resort to heavy-handed compression.

The two PEQs fattened up an edgy stereo electric guitar that was recorded with reverb and delay effects. Boosting at 28 kHz shelving using the Air-Band mode in the HF section brightened the sound without getting harsh, strident and fizzy. To that end, I did cut about 1.5 dB (between detents) @ 4 kHz in the HM section with low Q and later added +3dB shelving at 80 Hz using the LF section. This brought the guitar track forward in the mix with a slightly brighter sound but without adding appreciable VU level.

By slightly overdriving the signal coming from the insert point in Pro Tools into the PEQ and then boosting in the LF or LM sections until the O/L LED starts flashing, I added the Lundahl transformer’s saturation to the guitar’s sound—both subtle and phenomenal. I liked this especially for rhythm parts that were recorded a little too clean; the PEQ got them chunky-thick and unruly sounding.

On a drum kit, recorded in a small room, the 2X position on the HM section in low Q sounded great boosting at 10 kHz (bell) and also the LM section in high Q to remove by -3dB the overall boxy room tone around 800 Hz. On the same kit’s piccolo snare drum I used a Shure SM57 up close and found the high Q position worked well to boost +3 dB at 230 Hz in the PEQs LM section. But I also added a +6 dB shelving boost at 16 kHz with the HF section. This EQ opened up the sound and definitely played down the “coffee can” sound from of the snare drum and room. I certainly loved the LF section for the kick drum. After locating the frequency center of interest by sweeping frequency using high Q mode, I just switched over to shelf mode, readjusted the boost to taste and I was done. To me, the sound here is like old British EQs such as found in the Trident A Range channel strips.

Task Master

The RTZ Professional Audio PEQ-1549 Parametric EQ is up to any task, be it for gentle and smooth mix-program touchups, as a tracking utility EQ, or for major emergency surgery for audio on life support. I especially like the HF section’s fully adjustable Air-Band mode and the LF section’s intense low-frequency carving ability for bass guitars and kicks. Wake up your 500 rack with one or two of these little EQ tonmeisters. Highly recommended.

Barry Rudolph is an L.A.-based recording engineer and educator.

Try This

You can use a pair of PEQ-1549s as mastering EQs provided you take care in their setup and use. With such small knobs and the inter-detent settings possible, I first had to verify that my two modules were spot-on in calibration. As expected, a 1kHz tone was unity through the modules with all +/- controls zeroed and HP/LP filters off. Once I arrived at an EQ setting for my mix, I went back and re-toned to make sure both L/R channels were still equally set with matching EQs and level.

In Pro Tools, I placed my pair of PEQs in the insert paths before my usual stereo bus plug-in dynamic processors, an SSL Duende Stereo Bus compressor followed by a Sonnox Limiter. I liked that I could boost the lows and then use the HP filter to exactly carve the extension and level of the track’s low frequencies before dynamic processing. Both the HF and HM sections proved to be wonderful sounding for overall brightening and making competitive-sounding mixes.

Product Summary

COMPANY: RTZ Professional Audio

WEBSITE:rtzaudio.com

PRODUCT: PEQ-1549 Parametric EQ

PRICE: $845 base; $1,010 with transformer option

PROS: Excellent problem-solver and smoothing tool in one.

CONS: Crowded front panel.
